Psychopy & Python Slides

What is it?

Psychopy is a Python package - aka a collection of functions written in Python that you can use to create experiments with high precision

Why should you use it?

It’s opensource (you can check all the background code here)
It’s very precise (don’t listen to Eprime users, they’re jealous)
It’s versatile (key presses, eye-tracking, EEG, webcams, MRI, etc…)

This does not mean you won’t find some difficulties (we’ll come back to this later)

It’s just Python

for thisComponent in introComponents:
    thisComponent.tStart = None
    thisComponent.tStop = None
    thisComponent.tStartRefresh = None
    thisComponent.tStopRefresh = None
    if hasattr(thisComponent, 'status'):
        thisComponent.status = NOT_STARTED
# reset timers
t = 0
_timeToFirstFrame = win.getFutureFlipTime(clock="now")
frameN = -1

# --- Run Routine "intro" ---
while continueRoutine:
    # get current time
    t = routineTimer.getTime()
    tThisFlip = win.getFutureFlipTime(clock=routineTimer)
    tThisFlipGlobal = win.getFutureFlipTime(clock=None)
    frameN = frameN + 1  # number of completed frames (so 0 is the first frame)
    # update/draw components on each frame

    # check for quit (typically the Esc key)
    if endExpNow or defaultKeyboard.getKeys(keyList=["escape"]):
        core.quit()

    # check if all components have finished
    if not continueRoutine:  # a component has requested a forced-end of Routine
        routineForceEnded = True
        break

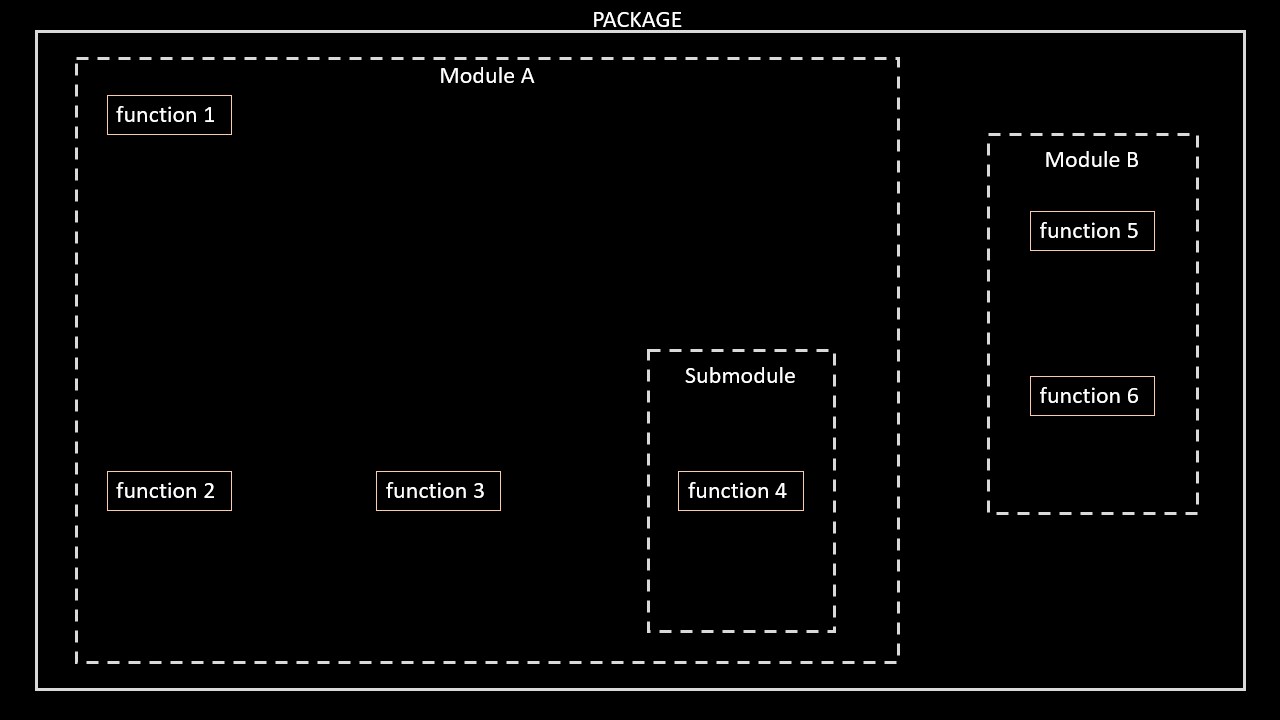

Packages

How to import a function

# We need to load the packages

import packageName #To import the whole package
from packageName import moduleName #To import a module
from packageName.moduleName.subModule import functionName #To import specific function from subModule

# Function in package
packageName.functionName()

# Function in submodule
packageName.moduleName.functionName()

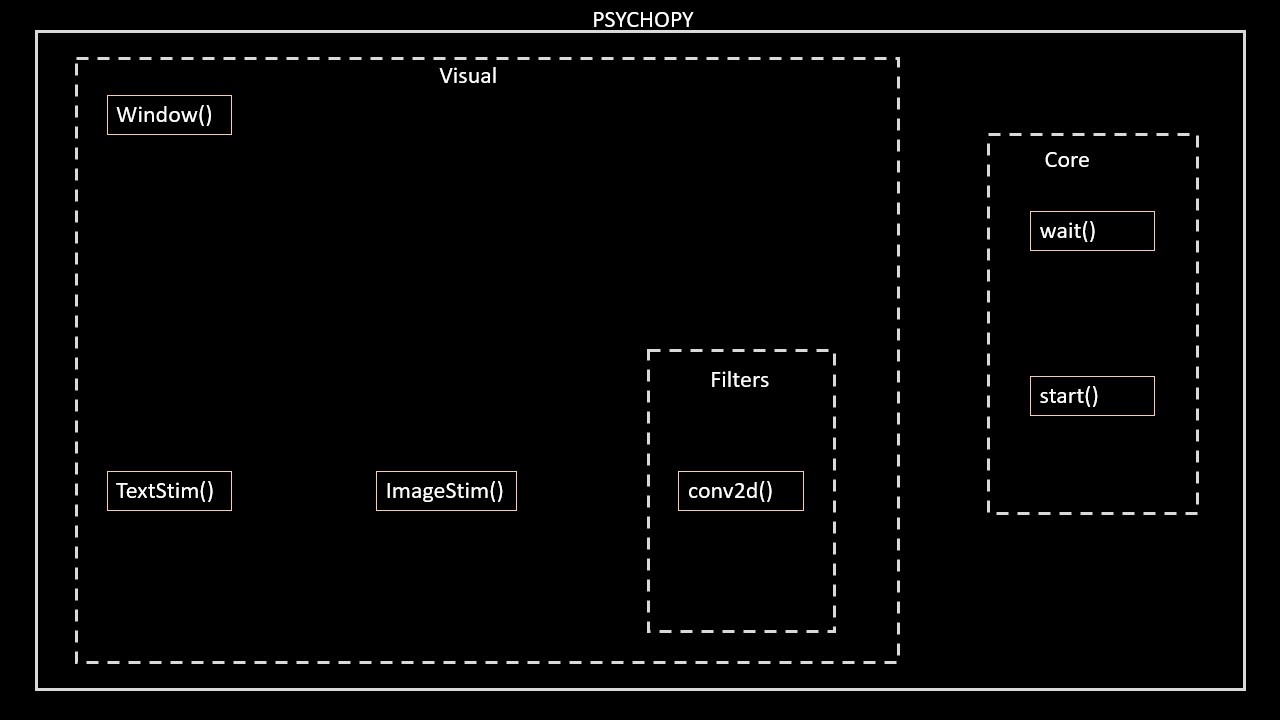

How to import a function

# We need to load the packages
import psychopy #To import the whole psychopy package
from psychopy import visual #To import the submodule package
from psychopy.visual.filters import conv2d #To import the conv2d function from the submodule filters

# Use the win function in Visual module
win = visual.Window(
    size = [500, 500],
    fullscr = False,
    color = [1, 1, 1],
    units = "pix")

We don’t need all of this…just wait

Coding an experiment (kinda)

Creating stimuli

# Import required modules
from psychopy import visual

Creating stimuli

# Import required modules
from psychopy import visual

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

Creating stimuli

# Import required modules
from psychopy import visual

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

Why is it not working?

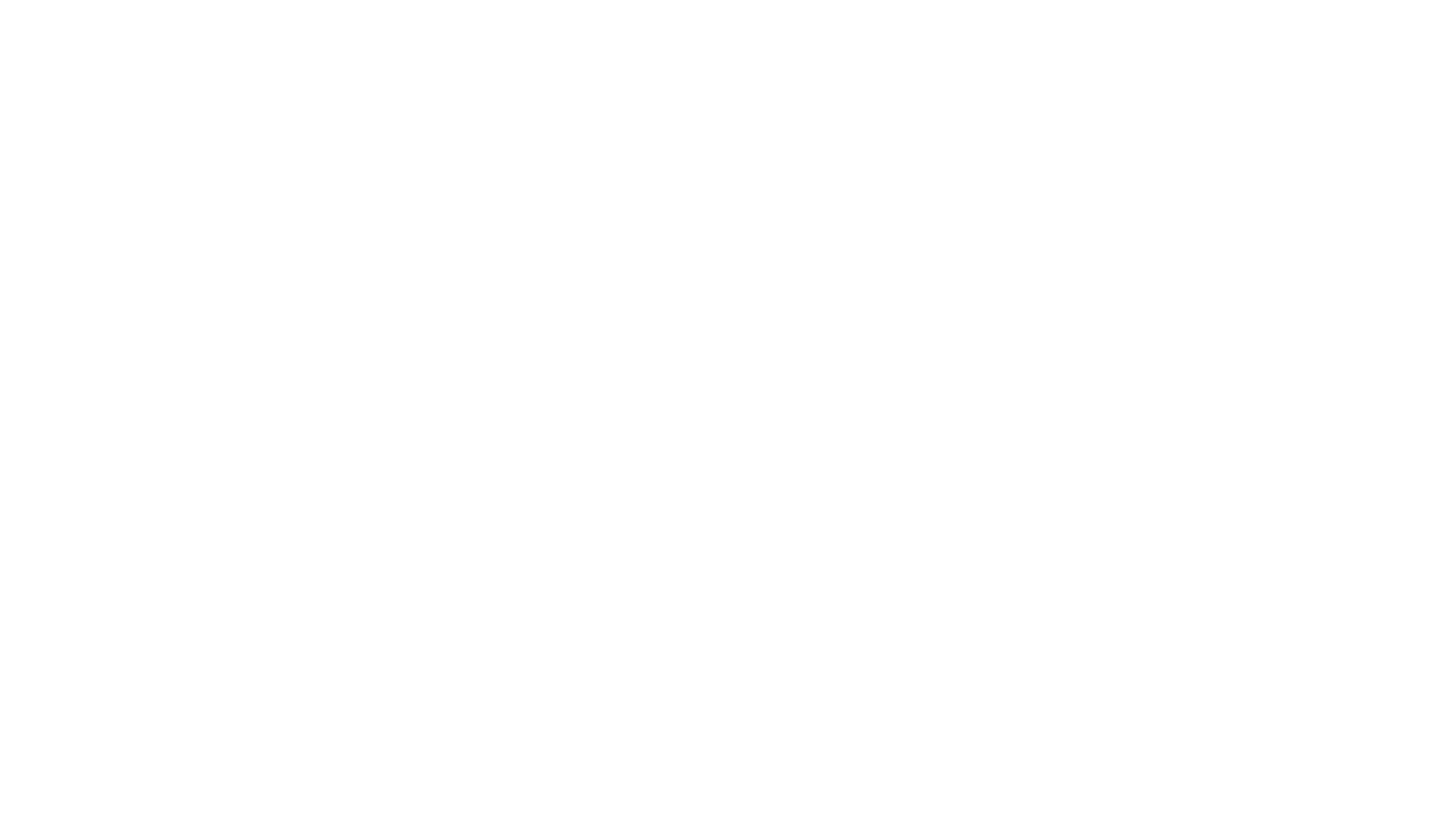

How we draw images

We need to draw the stimulus to the GPU and update the screen

How we draw images

# Import required modules
from psychopy import visual

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

How we draw images

# Import required modules
from psychopy import visual

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Draw stimulus to GPU
top_r.draw()
# Update screen
win.flip()

Make the Stimuli last longer

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Draw stimulus to GPU
top_r.draw()
# Update screen
win.flip()

# Stop for 5 seconds before doing anything else
core.wait(5)

Make the Stimuli last longer

BUT

core.wait() is a PsychoPy function that doesn’t exist in PsychoJS. Having said that, core.wait() should never be used in a Builder experiment, only in Python scripts that are crafted by hand. Builder scripts are structured around a drawing and event loop that assumes that any code that runs can be completed within one screen refresh (typically at 60 Hz this is 16.666 ms), because Builder is actively drawing to the screen on every refresh, checking for responses and so on, even if stimuli don’t appear to be changing. core.wait() breaks this active drawing cycle and can completely muck up Builder’s internal timing. You should restructure your experiment to avoid core.wait(). The translation to PsychoJS should then hopefully be straightforward.

Michael MacAskill

Make the Stimuli last longer

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Time in frames (1 second at 60Hz is 60 frames)
frames = 60

Make the Stimuli last longer

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Time in frames (1 second at 60Hz is 60 frames)
frames = 60

# Use frames for presentation
for iFrame in range(frames):

Make the Stimuli last longer

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Time in frames (1 second at 60Hz is 60 frames)
frames = 60

# Use frames for presentation
for iFrame in range(frames):

    # Draw stimulus to GPU
    top_r.draw()
    # Update screen
    win.flip()

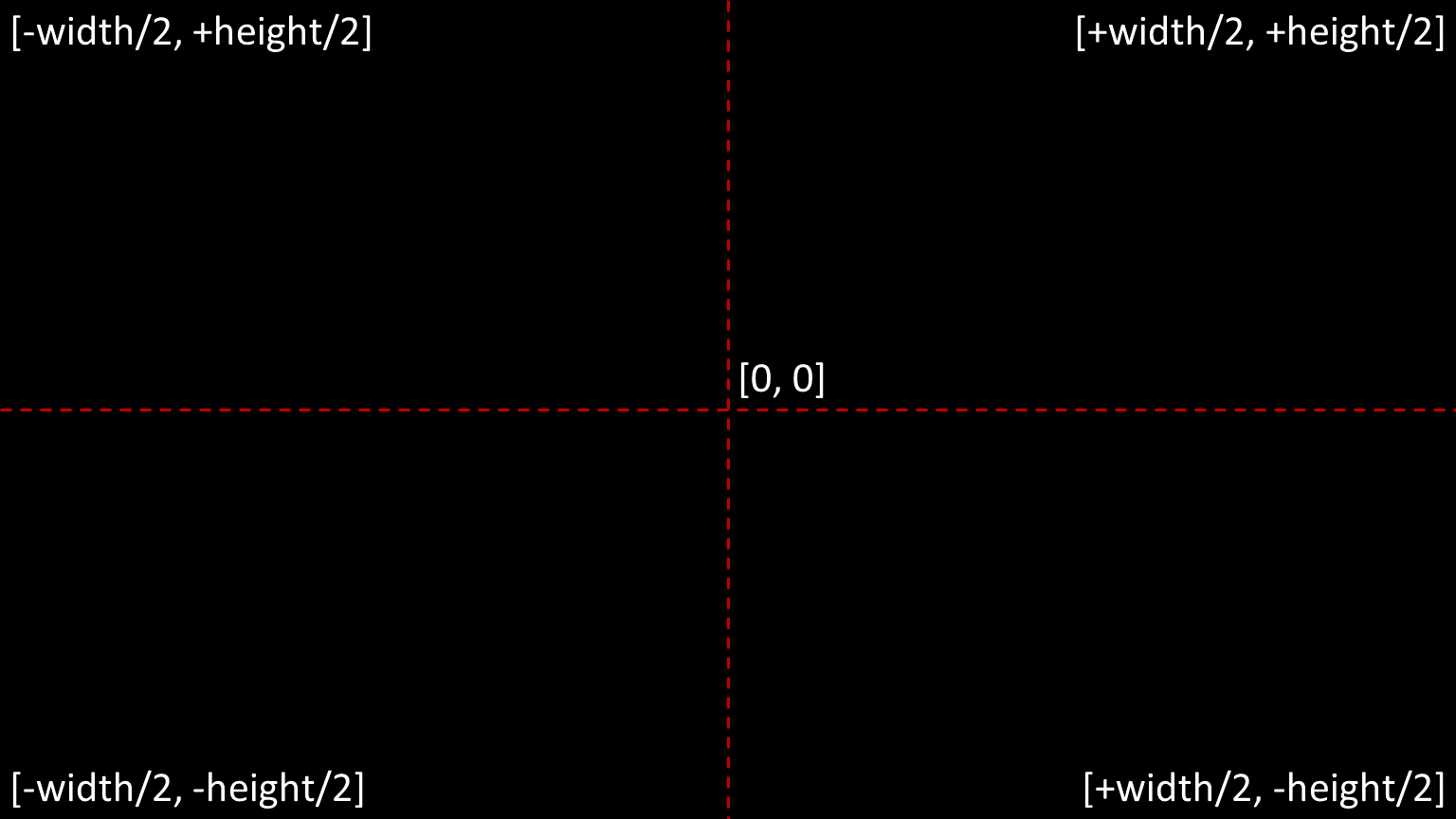

Can you modify the position of the R?

Modifying the R

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 0],
    height = 50,
    )

# Time in frames (1 second at 60Hz is 60 frames)
frames = 60

# Use frames for presentation
for iFrame in range(frames):

    # Draw stimulus to GPU
    top_r.draw()
    # Update screen
    win.flip()

Adding a second R

# Import required modules
from psychopy import visual, core

# Create window
win = visual.Window(
    size    = [500, 500],
    fullscr = False,
    color   = [0, 0, 0],
    units   = "pix")

# Create letter R
top_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0, 150],
    height = 50,
    )

# Create a second R
bottom_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0,-150],
    height = 50,
    )

Adding a fixation cross

# Create a second R
bottom_r = visual.TextStim(
    win    = win,
    text   = "R",
    color  = [1, 1, 1],
    pos    = [0,-150],
    height = 50,
    )

# Create fixation cross
fixation = visual.ShapeStim(
    win       = win,
    vertices  = 'cross',
    size      = (25, 25),
    pos       = (0, 0),
    lineColor = 'white',
    fillColor = 'white'
    )

Remember to draw and flip!

# Use frames for presentation
for iFrame in range(frames):

    # Draw stimuli to GPU
    top_r.draw()
    bottom_r.draw()
    fixation.draw()
    # Update screen
    win.flip()

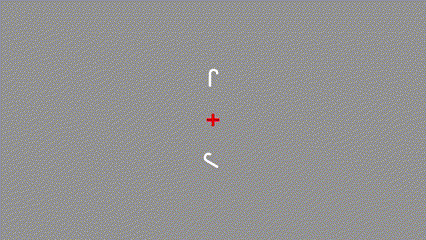

Make it spin

Let’s make the bottom R rotate at different angles

# Possible angles
angles = [0, 30, 90, 270, 340]

# Use frames for presentation
for iFrame in range(frames):

    # Draw stimuli to GPU
    top_r.draw()
    bottom_r.draw()
    fixation.draw()
    # Update screen
    win.flip()

Make it spin

Let’s make the bottom R rotate at different angles

# Possible angles
angles = [0, 30, 90, 270, 340]

# Loop through angles
for iAngle in angles:

    # set the angle for the current presentation
    bottom_r.setOri(iAngle)

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

Make it spin

Let’s make the bottom R rotate at different angles

# Possible angles
angles = [0, 30, 90, 270, 340]

# Loop through angles
for iAngle in angles:

    # set the angle for the current presentation
    bottom_r.setOri(iAngle)

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

Make it flip

Let’s flip the bottom R

# Possible angles
angles = [0, 30, 90, 270, 340]
# Is stimulus flipped?
is_flip = [0, 1, 1, 0, 1]

# Loop through angles
for iAngle in angles:

    # set the angle for the current presentation
    bottom_r.setOri(iAngle)
    # Set flip
    bottom_r.flipHoriz = is_flip[iTrial]

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

Collecting responses…

Add a keyboard component to record key presses

# Create fixation cross
fixation = visual.ShapeStim(
    win       = win,
    vertices  = 'cross',
    size      = (25, 25),
    pos       = (0, 0),
    lineColor = 'white',
    fillColor = 'white'
    )

# Create keyboard component to record key presses
keyboard = keyboard.Keyboard()

Collecting responses…

Add a keyboard component to record key presses

# Loop through angles
for iTrial, iAngle in enumerate(angles):

    # set the angle for the current presentation
    bottom_r.setOri(iAngle)

    # Set flip
    bottom_r.flipHoriz = is_flip[iTrial]

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

        # Get key presses
        keys = keyboard.getKeys(['x', 'm'])

…and check answer

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

        # Get key presses
        keys = keyboard.getKeys(['x', 'm'])

        # Check answer
        if 'm' in keys and not is_flip[iTrial]:
            # Answer is correct = Make Fixation Green
        elif 'x' in keys and is_flip[iTrial]:
            # Answer is correct = Make Fixation Green
        elif 'm' in keys and is_flip[iTrial]:
            # Answer is wrong = Make Fixation Red
        elif 'x' in keys and not is_flip[iTrial]:
            # Answer is wrong = Make Fixation Red

…and check answer

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

        # Get key presses
        keys = keyboard.getKeys(['x', 'm'])

        # Check answer
        if 'm' in keys and not is_flip[iTrial]:
            fixation.color = [-1, 1, -1]
        elif 'x' in keys and is_flip[iTrial]:
            fixation.color = [-1, 1, -1]
        elif 'm' in keys and is_flip[iTrial]:
            fixation.color = [1, -1, -1]
        elif 'x' in keys and not is_flip[iTrial]:
            fixation.color = [1, -1, -1]

…and check answer

Remember to reset the fixation to white at the beginning of the trial!

# Loop through angles
for iTrial, iAngle in enumerate(angles):

    # Reset fixation colour to white
    fixation.color = [1, 1, 1]

    # Use frames for presentation
    for iFrame in range(frames):

        # Draw stimuli to GPU
        top_r.draw()
        bottom_r.draw()
        fixation.draw()
        # Update screen
        win.flip()

        # Get key presses
        keys = keyboard.getKeys(['x', 'm'])

        # Check answer
        if 'm' in keys and not is_flip[iTrial]:
            fixation.color = [-1, 1, -1]
        elif 'x' in keys and is_flip[iTrial]:
            fixation.color = [-1, 1, -1]
        elif 'm' in keys and is_flip[iTrial]:
            fixation.color = [1, -1, -1]
        elif 'x' in keys and not is_flip[iTrial]:
            fixation.color = [1, -1, -1]

Mental Rotation

No need to code everything

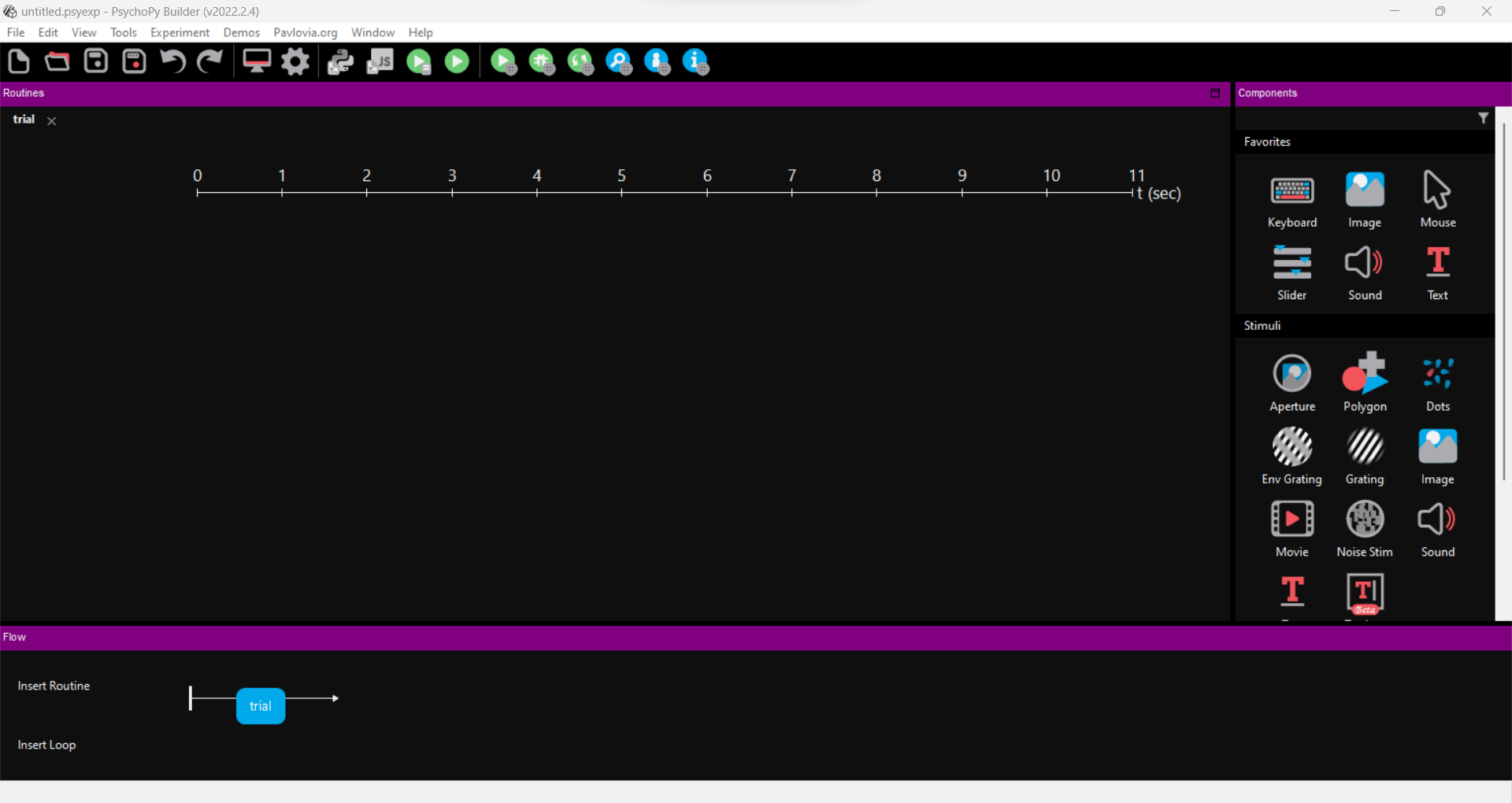

Builder

Screen Coordinates

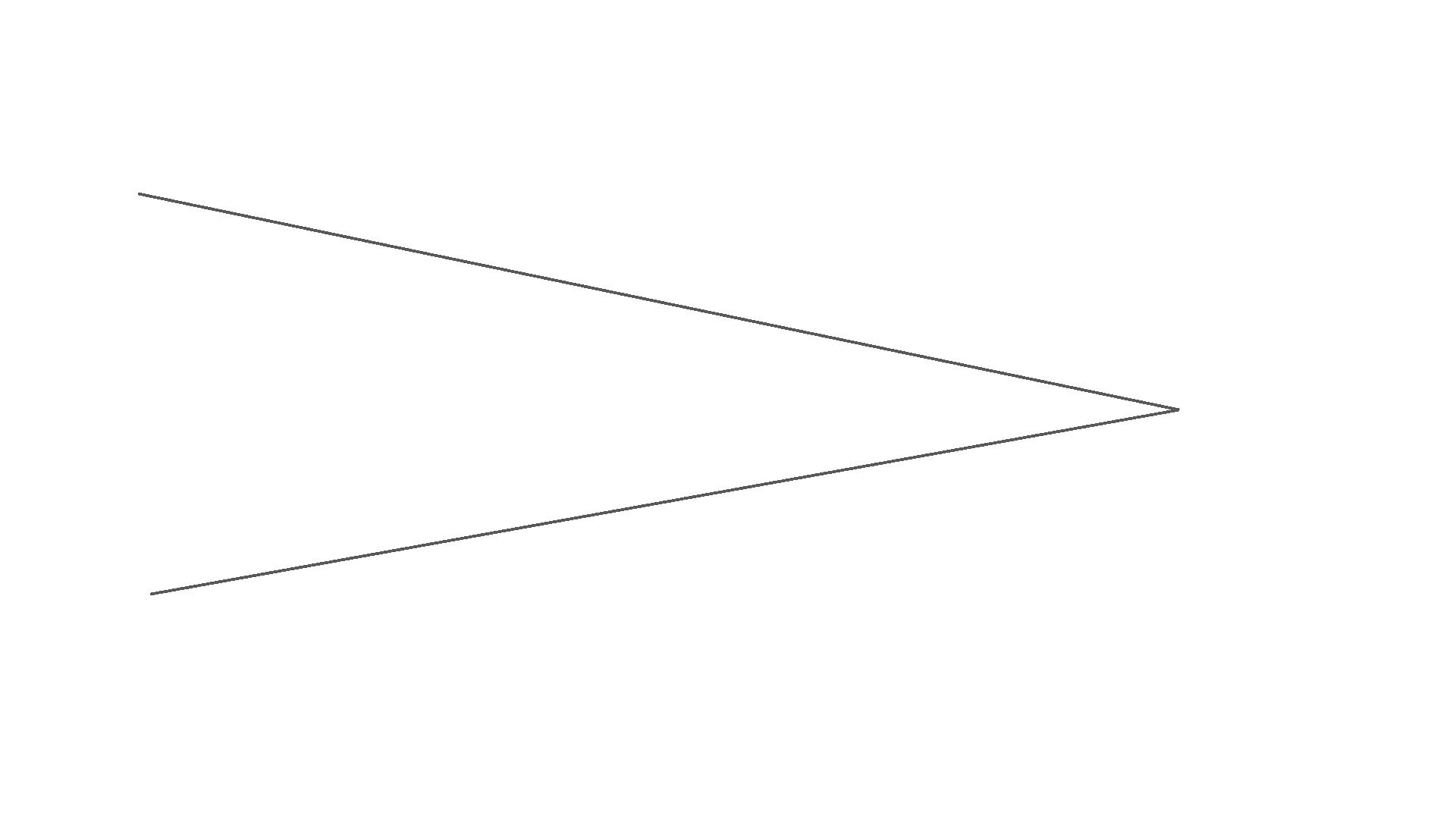

Degrees of visual angle

Why the R disappeared?

Precise timing

How a screen work?

Framerate

Number of times your screen updates in one second
Expressed in Hertz (eg. 60Hz = 60 times a second)
You need to test your PC stability

Framerate

Bugs

It could happen that the software you use contains a bug. Thankfully, we are using an opensource software, so we can check the problem, find a solution and even provide this solution to other people!

Bugs

We add a code component to the trial routine. The code goes in the begin routine tab of the component

# Fix the bug
if flip_condition == 'horiz':
    letter.flipHoriz = True
    letter.flipVert = False
else:
   letter.flipHoriz = False
   letter.flipVert = False

Solution taken from here

Psychopy & Python Slides

What is it?

Why should you use it?

It’s just Python

Packages

Packages

How to import a function

How to import a function

Coding an experiment (kinda)

Creating stimuli

Creating stimuli

Creating stimuli

Why is it not working?

How we draw images

How we draw images

How we draw images

Make the Stimuli last longer

Make the Stimuli last longer

Make the Stimuli last longer

Make the Stimuli last longer

Make the Stimuli last longer

Can you modify the position of the R?

Modifying the R

Adding a second R

Adding a fixation cross

Make it spin

Make it spin

Make it spin

Make it flip

Collecting responses…

Collecting responses…

…and check answer

…and check answer

…and check answer

Mental Rotation

Mental Rotation

No need to code everything

Builder

Builder

Builder

Screen Coordinates

Degrees of visual angle

Why the R disappeared?

Precise timing

How a screen work?

Framerate

Framerate

Bugs

Bugs

Bugs

Thank you!
